Box PC
AIT-B01
AIT-B01

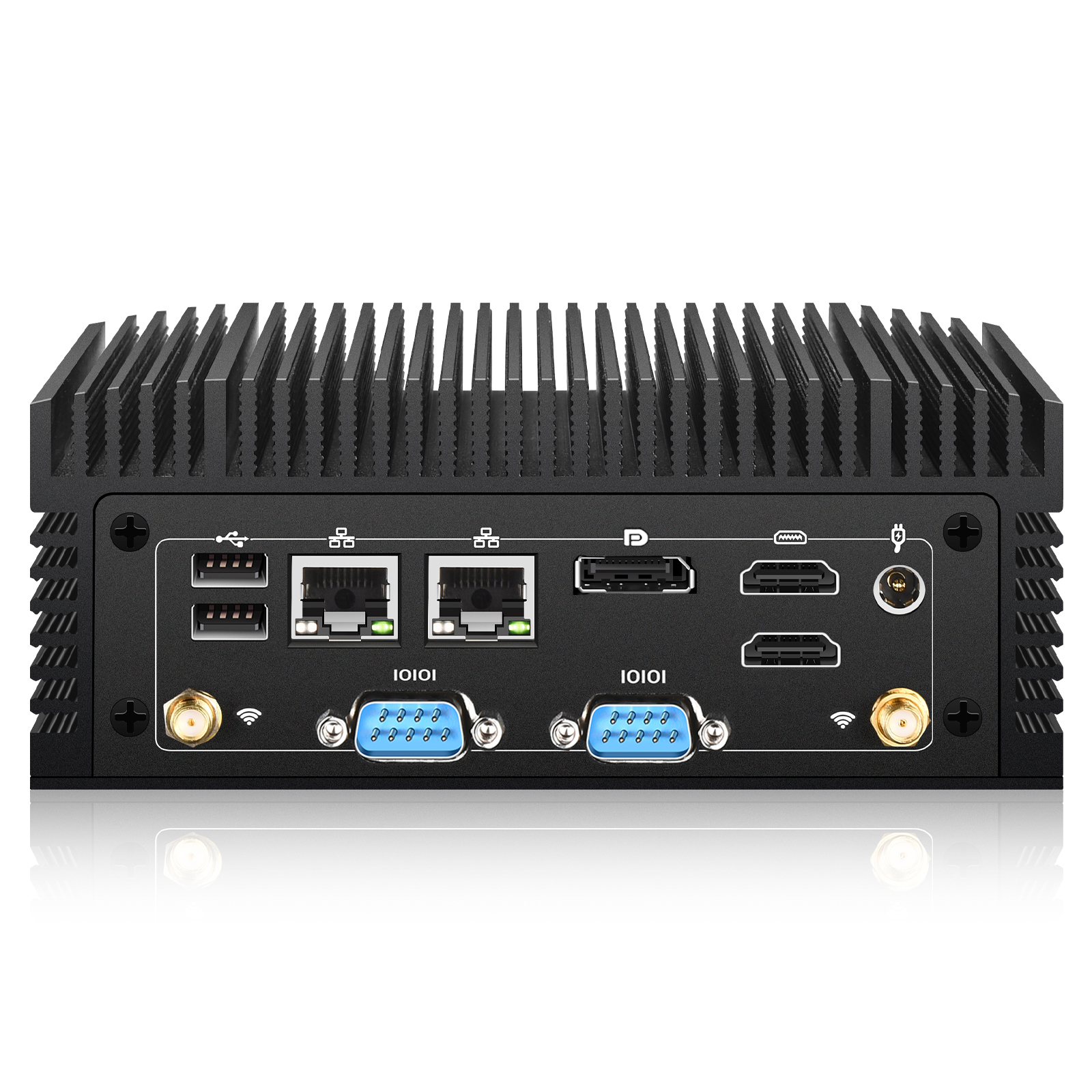

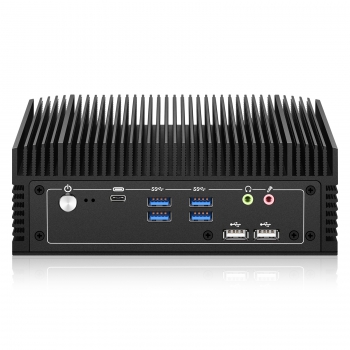

This compact industrial box PC from Artessa IT features Intel 12th and 13th generation processors (Alder Lake-N / Twin Lake) with up to 8 cores and DDR5-4800 memory. With 6 Gigabit and 2 × 2.5 Gigabit LAN ports, 6 configurable RS-232/485/422 serial interfaces, dual 5G/4G module slots, and CAN bus support, the system is ideal for networking, IoT, and automation applications. The rugged aluminum chassis with VESA mount operates reliably from -20°C to +55°C and supports Windows 11, Windows 10, and Linux.
Processor
Intel Core i3-N305
RAM max.
up to 16 GB DDR5
Temperature Range
-20 … +55 °C
Mounting
VESA 70x70mm, VESA 100x100mm, Desktop
Technical Specifications
Processor & Performance
| Processor | Intel Core i3-N305 |
| CPU Generation | 12th Gen Alder Lake-N |
| Cores | 8 |
| Threads | 8 |
| Base Clock | 1.8 GHz |
| Boost Clock | 3.8 GHz |
| TDP | 15 W |
| CPU Options |
|
Memory
| RAM Type | DDR5 |
| RAM max. | 16 GB |
| RAM Slots | 1× |
| RAM Speed | 4800 MT/s |
Storage
| Storage Slots |
|
| BIOS | UEFI with Wake On LAN, Auto power on when power failure, PXE |
Graphics & Display
| Display Outputs |
|
Network & Communication
| LAN Ports | 6× 2.5GbE |
| Bluetooth | true |
| COM Ports | 6× RS-232/422/485 |
Connectors
| USB Ports | USB 3.0 x6 |
Power Supply
| Power Input | 12-36V DC (Phoenix connector) / 100-240V AC (PSU output: 19V 3.78A DC) |
Mechanical
| Dimensions (mm) | 215 x 152 x 64.5 |
| Mounting | VESA 70x70mm, VESA 100x100mm, Desktop |
| Material | Aluminum |
Environment
| Temperature Range | -20 °C … +55 °C |
Security & Certification
| TPM | TPM 2.0 (Infineon chip, optional) |
| Supported Operating Systems |
|
