Box PC

AIT-B03

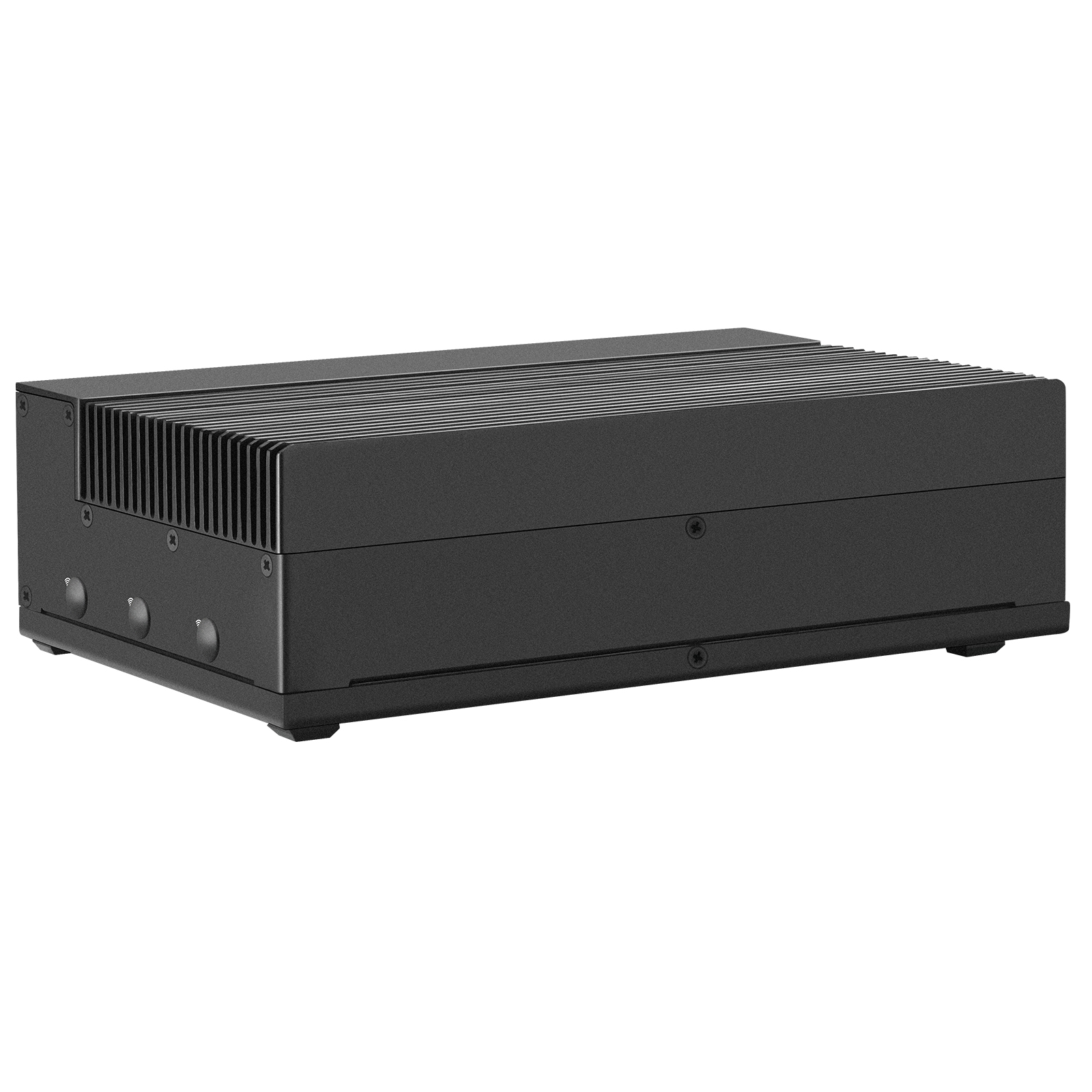

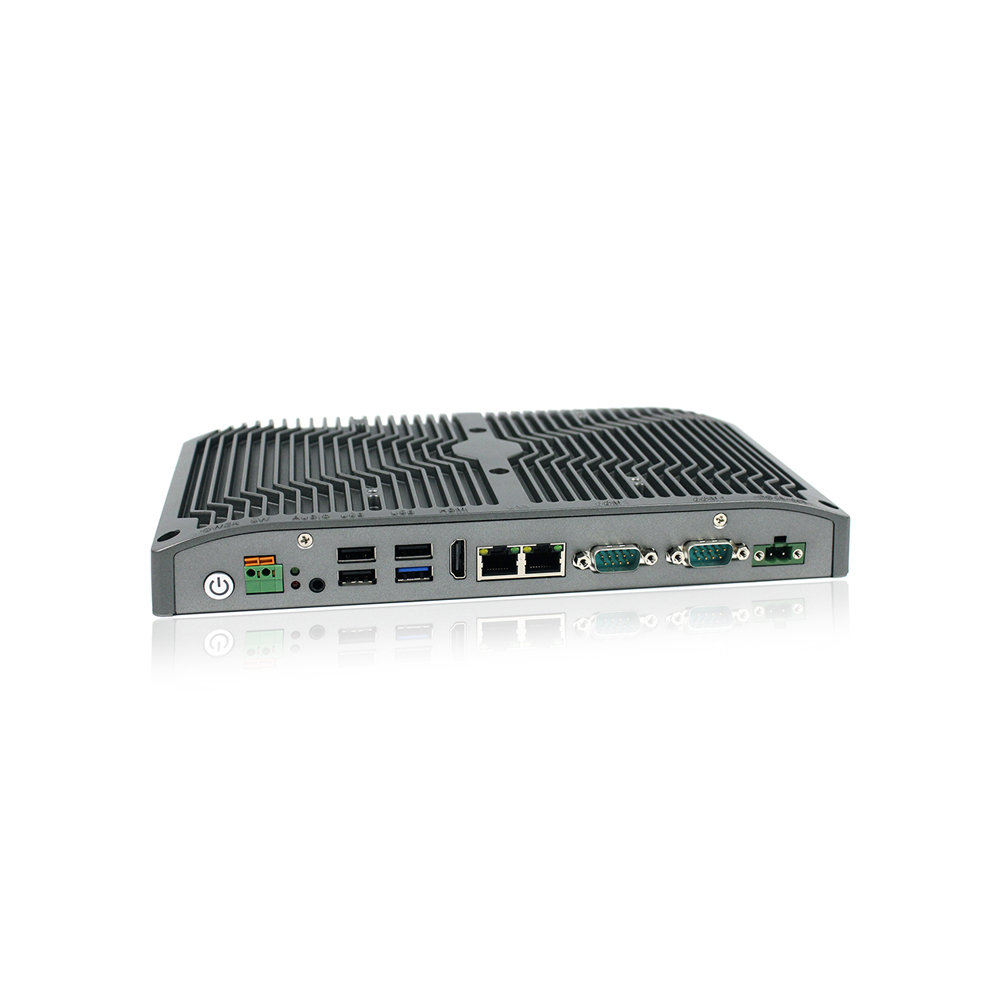

This compact Box PC from Artessa IT is powered by 12th Gen Intel Alder Lake processors up to Core i7-1260P with 12 cores. Featuring dual 2.5 Gigabit Ethernet ports (Intel I226-V), Thunderbolt 4, and four video outputs (3x HDMI 2.0, 1x DP 1.4), the system is ideal for industrial applications, digital signage, and network appliances. Flexible connectivity includes serial interfaces (RS-232/485), M.2 slots for WiFi/LTE, and dual NVMe storage slots.

Processor

Intel Core i7-1260P

RAM max.

up to 64 GB DDR4

Temperature Range

0 … +85 °C

Mounting

Desktop, VESA 70x70mm, VESA 100x100mm

Compare Download Datasheet (PDF)

Technical Specifications

Processor & Performance

Processor	Intel Core i7-1260P
CPU Generation	12th Gen Alder Lake
Cores	12
Threads	16
Base Clock	2.1 GHz
Boost Clock	4.7 GHz
TDP	28 W
CPU Options	·Intel Core i3-1215U (Alder Lake-U, 6C/8T, 1.2/4.4 GHz, 15W) ·Intel Core i5-1235U (Alder Lake-U, 10C/12T, 1.3/4.4 GHz, 15W) ·Intel Core i5-1240P (Alder Lake-P, 12C/16T, 1.7/4.4 GHz, 28W) ·Intel Core i7-1255U (Alder Lake-U, 10C/12T, 1.7/4.7 GHz, 15W) ·Intel Core i7-1260P (Alder Lake-P, 12C/16T, 2.1/4.7 GHz, 28W)
