Mini PC
AIT-M01
AIT-M01

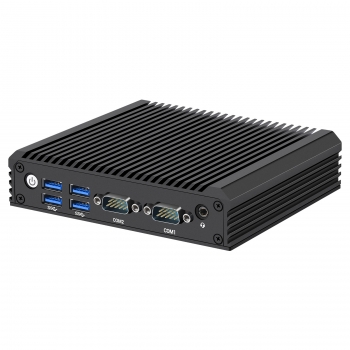

This compact industrial Mini PC from Artessa IT is powered by latest-generation Intel Core Ultra processors with Intel B860 chipset and integrated NPU (13 TOPS). Equipped with up to 128 GB DDR5-4800 RAM, four HDMI 2.0b outputs for multi-display setups, dual 2.5GbE LAN ports, and four configurable RS-232/RS-485 COM ports, the system is ideal for industrial automation, AI-powered edge computing, and visualization applications. The rugged metal enclosure and extended operating temperature range of -10°C to +55°C ensure reliable 24/7 operation in demanding industrial environments.
Processor
Intel Core Ultra 7 265
RAM max.
up to 128 GB DDR5
Temperature Range
-10 … +55 °C
Mounting
Desktop
Technical Specifications
Processor & Performance
| Processor | Intel Core Ultra 7 265 |
| CPU Generation | Core Ultra (Series 2) |
| Chipset | Intel B860 |
| CPU Options |
|
Memory
| RAM Type | DDR5 |
| RAM max. | 128 GB |
| RAM Slots | 2× |
| RAM Speed | 4800 MHz |
Storage
| Storage Slots |
|
| BIOS | UEFI |
Graphics & Display
| Display Outputs | HDMI 2.0b x4 |
Network & Communication
| LAN Ports | 2× 2.5GbE |
| Wi-Fi Standard | 802.11ac/ax (Wi-Fi 6/6E) |
| COM Ports | 4× RS-232/422/485 |
Connectors
| USB Ports |
|
Power Supply
| Power Input | 100-240V AC |
Mechanical
| Dimensions (mm) | 191 x 165 x 43 |
| Weight | 1.5 kg |
| Mounting | Desktop |
| Material | Metal |
Environment
| Temperature Range | -10 °C … +55 °C |
Security & Certification
| Supported Operating Systems |
|
