Mini PC
AIT-M04
AIT-M04

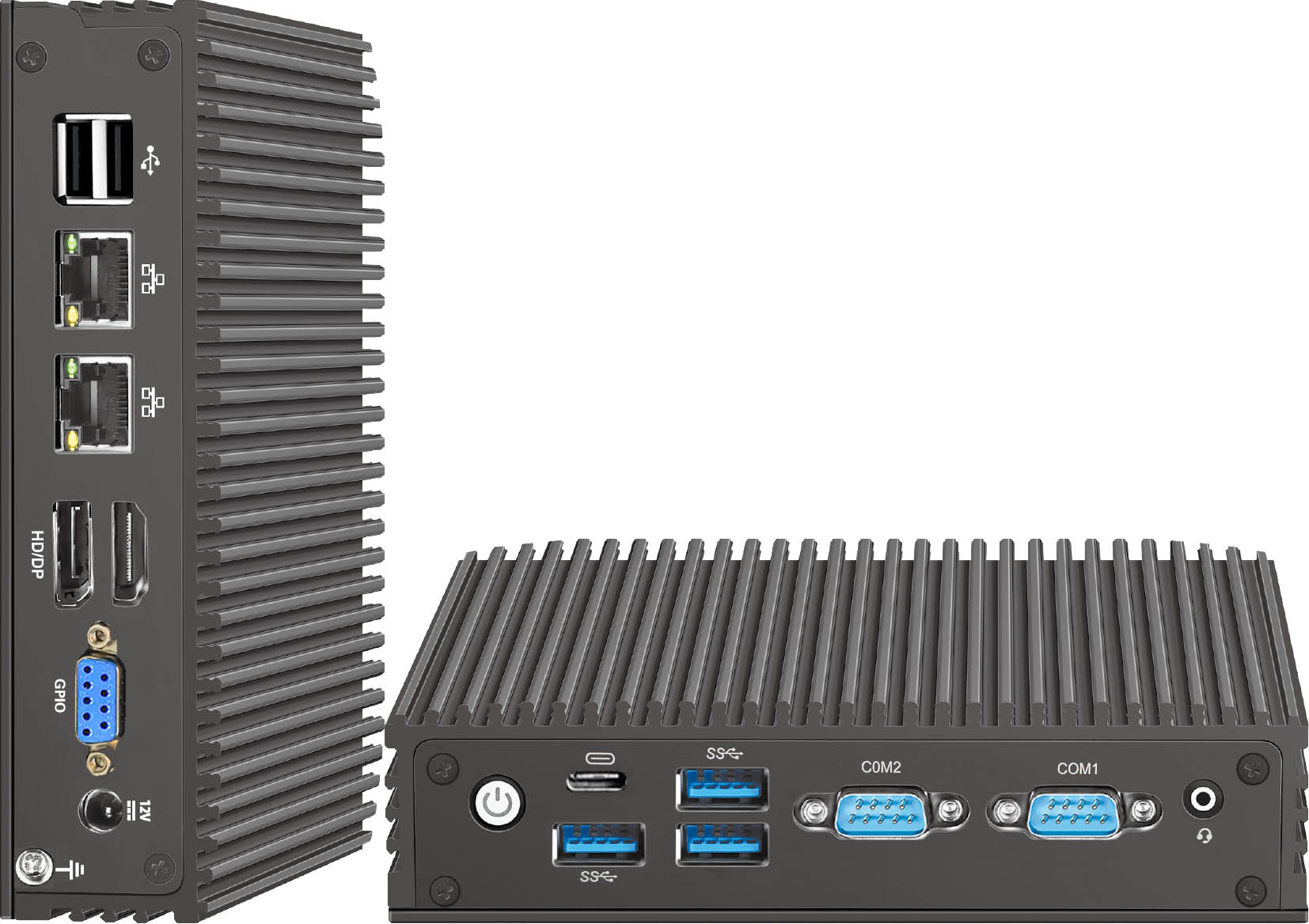

This compact mini-PC from Artessa IT features an Intel Celeron J6412 quad-core processor (2.0-2.6 GHz, 10W TDP) with support for up to 32 GB DDR4 RAM and an M.2 2280 NVMe/SATA SSD. Equipped with dual Gigabit LAN, four USB 3.0 ports, two RS-232/RS-485 COM interfaces, and both HDMI 2.0 and VGA outputs, it is ideal for industrial applications, digital signage, and network tasks. The rugged metal chassis with VESA mount (70×70/100×100 mm) allows flexible installation options.
Processor
Intel Celeron J6412
RAM max.
up to 32 GB DDR4
Temperature Range
0 … +85 °C
Mounting
Desktop, VESA 70×70/100×100mm
Technical Specifications
Processor & Performance
| Processor | Intel Celeron J6412 |
| CPU Generation | Elkhart Lake |
| Cores | 4 |
| Threads | 4 |
| Base Clock | 2 GHz |
| Boost Clock | 2.6 GHz |
| TDP | 10 W |
Memory
| RAM Type | DDR4 |
| RAM max. | 32 GB |
| RAM Slots | 1× |
| RAM Speed | 3200 MHz |
Storage
| Storage Slots | M.2 2280 NVMe/SATA III x1 |
| BIOS | UEFI |
Graphics & Display
| Display Outputs |
|
Network & Communication
| LAN Ports | 2× GbE |
| COM Ports | 2× RS-232/422/485 |
Connectors
| USB Ports |
|
Power Supply
| Power Input | 100-240V AC → 12V 2.5A DC |
Mechanical
| Dimensions (mm) | 145 x 127.5 x 34 |
| Mounting | Desktop, VESA 70×70/100×100mm |
| Material | Metal |
Environment
| Temperature Range | 0 °C … +85 °C |
Security & Certification
| Supported Operating Systems |
|
